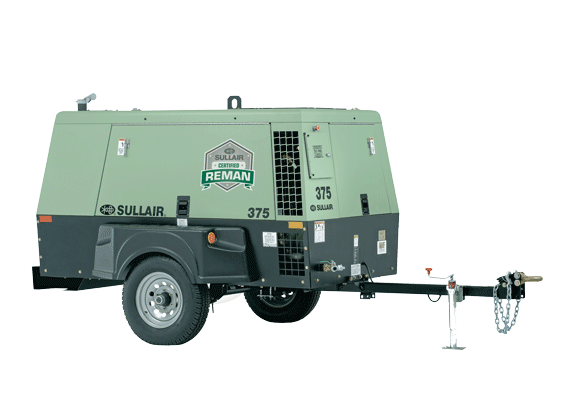

375H
Actual Delivery cfm (m³/min): 375 (11)
Rated Pressure psi (bar): 150 (10)
Pressure Range max/min psi (bar): 150(10)/80 (6)
Fuel Consumption 100% Load gph (l/h): 6.55 (25)
Max Operating Altitude ft (m): 10,000 (3048)
375HH
Actual Delivery cfm (m³/min): 375 (11)
Rated Pressure psi (bar): 200 (14)
Pressure Range max/min psi (bar): 200(14)/80 (6)
Fuel Consumption 100% Load gph (l/h): 6.55 (25)
Max Operating Altitude ft (m): 10,000 (3048)
425H
Actual Delivery cfm (m³/min): 425 (12)
Rated Pressure psi (bar): 150 (10)
Pressure Range max/min psi (bar): 150(10)/80 (6)
Fuel Consumption 100% Load gph (l/h): 6.55 (25)
Max Operating Altitude ft (m): 10,000 (3048)
425HAF
Actual Delivery cfm (m³/min): 425 (12)
Rated Pressure psi (bar): 150 (10)
Pressure Range max/min psi (bar): 150(10)/80 (6)
Fuel Consumption 100% Load gph (l/h): 6.55 (25)
Max Operating Altitude ft (m): 10,000 (3048)
900XHH/1150XH
Actual Delivery cfm (m³/min): 900 (26)/1150 (33)
Rated Pressure psi (bar): 500/350 (35/25)
Pressure Range max/min psi (bar): 500/350 (35/25)
Fuel Consumption 100% Load gph (l/h): 27 (102)
Max Operating Altitude ft (m): 10,000 (3048)
1300XHH/1525XHDL
Actual Delivery cfm (m³/min): 1300 (26)/1525 (43.2)
Rated Pressure psi (bar): 500/350 (35/25)
Pressure Range max/min psi (bar): 500/350 (35/25)
Fuel Consumption 100% Load gph (l/h): 32 (121.5)
Max Operating Altitude ft (m): 8000 (2440)
1600HAF
Actual Delivery cfm (m³/min): 1600 (45.3)
Rated Pressure psi (bar): 150 (10)
Pressure Range max/min psi (bar): 150(10)/85 (6)
Fuel Consumption 100% Load gph (l/h): 23.3 (8)
Max Operating Altitude ft (m): 10,500 (3200)
