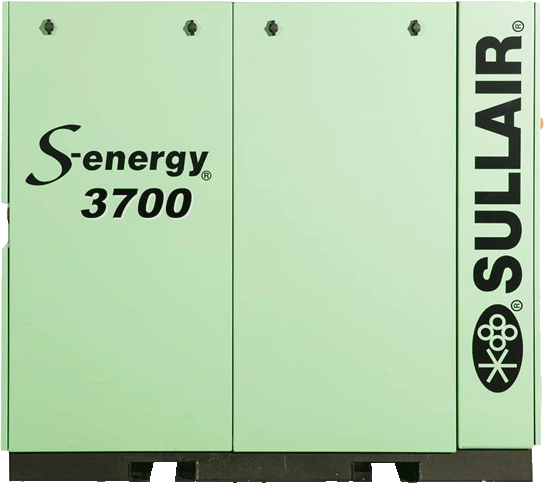

S-energy® 3000PB – 7500PSB Rotary Screw Air Compressors

Sullair has enhanced our flagship S-energy® 40 to 100 hp compressors. S-energy units feature the same robust, globally recognized air end with the same highly efficient asymmetric profile and tapered roller bearings- backed by the Sullair comprehensive 10-year Diamond Warranty.

  • Efficiency. High performance with low energy usage, achieved by combining carefully selected high-efficiency components.
  • Durability. Sullair builds compressors to last! Key to S-energy durability and long-lasting performance: the legendary and proven Sullair air end, a robust 3G enclosure, high quality craftsmanship and a precisely engineered design to tie it all together.
  • Reliability. Compressors are key to your operation running smoothly. S-energy’s reliable performance helps ensure maximum uptime–and maximum confidence.
  • Serviceability. Lift-off panels. Oil sampling valve. Tilt and slide oil/aftercooler. Integrated moisture separator. S-energy’s package is designed to make servicing quick and easy.
  • Cost Savings. S-energy compressors can significantly reduce operating and energy costs over the entire compressor life cycle with our proven air end with a low-restriction inlet valve, premium efficient drive motor design, and low-pressure-drop air-fluid separation system to prevent energy loss.

Models vary by region. Please contact your Sullair sales representative for more details.

Jump To:

Specs Contact Us
CFM
CFM

Flow

163 – 500 cfm
m³/min
Pressure
Pressure

Pressure

100 – 175 psi
bar
Horsepower
Horsepower

Power

40 – 100 hp
30 – 75 kw

m³/min

4.62 – 14.16 m³/min

bar

6.9 – 12.1 bar

  • Available models:
    • 3000PB—40 hp (30 kW), 166 to 200 acfm (4.7 to 5.66 m³/min), 100 to 150 psig (6.9 to 10.3 bar)
    • 3000PVB—40 hp (30 kW) Variable Speed Drive (VSD), 163 to 200 acfm (4.62 to 5.66 m³/min), 100 to 150 psig (6.9 to 10.3 bar)
    • 3700B—50 hp (37 kW), 180 to 251 acfm (5.10 to 7.11 m³/min), 100 to 175 psig (6.9 to 12.1 bar)
    • 3700VB—50 hp (37 kW) Variable Speed Drive (VSD), 183 to 249 acfm (5.18 to 7.05 m³/min), 100 to 175 psig (6.9 to 12.1 bar)
    • 4500B—60 hp (45 kW), 221 to 269 acfm (6.26 to 7.62 m³/min), 125 to 175 psig (8.6 to 12.1 bar)
    • 4500VB—60 hp (45 kW) Variable Speed Drive (VSD), 222 to 260 acfm (6.29 to 7.36 m³/min), 125 to 175 psig (8.6 to 12.1 bar)
    • 4500P—60 hp (45 kW), 233 to 303 acfm (6.59 to 8.58 m³/min), 100 to 150 psig (6.9 to 10.3 bar)
    • 4500PVB—60 hp (45 kW) Variable Speed Drive (VSD), 269 to 305 acfm (7.62 to 8.64 m³/min), 100 to 125 psig (6.9 to 8.6 bar)
    • 4500PSB—60 hp (45 kW) with Spiral Valve, 276 to 310 acfm (7.82 to 8.78 m³/min), 100 to 125 psig (6.9 to 8.6 bar)
    • 5500B—75 hp (55 kW), 277 to 377 acfm (7.84 to 10.68 m³/min), 100 to 175 psig (6.9 to 12.1 bar)
    • 5500VB—75 hp (55 kW) Variable Speed Drive (VSD), 278 to 377 acfm (7.87 to 10.68 m³/min), 100 to 175 psig (6.9 to 12.1 bar)
    • 5500PSB—75 hp (55 kW) with Spiral Valve, 354 to 387 acfm (10.02 to 10.96 m³/min), 100 to 125 psig (6.9 to 8.6 bar)
    • 7500B—100 hp (75 kW), 370 to 490 acfm (10.48 to 13.87 m³/min), 100 to 175 psig (6.9 to 12.1 bar)
    • 7500VB—100 hp (75 kW) Variable Speed Drive (VSD), 381 to 493 acfm (10.79 to 13.96 m³/min), 100 to 175 psig (6.9 to 12.1 bar)
    • 7500P—100 hp (75 kW), 371 to 500 acfm (10.50 to 14.16 m³/min), 100 to 175 psig (6.9 to 12.1 bar)
    • 7500PVB—100 hp (75 kW) Variable Speed Drive (VSD), 394 to 500 acfm (11.16 to 14.16 m³/min), 100 to 175 psig (6.9 to 12.1 bar)
    • 7500PSB—100 hp (75 kW) with Spiral Valve, 371 to 500 acfm (10.50 to 14.16 m³/min), 100 to 175 psig (6.9 to 12.1 bar)

  • Legendary air end
  • Low restriction inlet valve for better cfm (m³/min) performance
  • Low carryover air/oil separator design
  • High efficiency drive and fan motor
  • Integral compressor sequencing
  • NEMA 4 Standard starter (full voltage or Wye-Delta)
  •  WS microprocessor
  • Compact footprint
  • Genuine Sullube® 10,000-hour, non-varnishing, biodegradable compressor fluid
  • Optimalair® air filter providing 10 times better filtration than other filters
  • Spiral Valve (on 4500PSB,  5500PSB, and 7500PSB models)
  • 10-year Diamond Warranty

Features may vary by model. Please contact your local distributor for more information.

  • Choice of air- or water-cooled
  • Cold weather package
  • Weather hood
  • TEFC motors
  • EES® heat recovery system VSD with NEMA 12
  • VSD Starter
  • Magnetic air inlet filters (standard on VSD)
  • High ambient package (131˚F, 55˚C)
  • PristineFG™ food grade compressor fluid
  • Oil containment pan (ships loose)

Please check with your local distributor for availability of these options on certain models.
