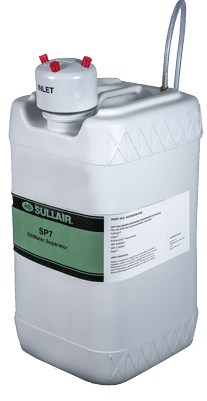

New! SP7 Oil Water Separator

The SP7 Oil Water Separator is an easy, convenient, clean and cost-effective solution to filter condensate discharge and keep your compressor room EPA compliant.

All SP model Oil/Water Separators are engineered molecular filtration solutions for condensate discharge problems. These units are designed for molecular filtration of condensate, including emulsified lubricant solutions. SP units have a 100% Performance Guarantee of less than 10 ppm oil carryover.

SP model Oil/Water Separators are engineered to minimize maintenance and clean up headaches and reduce the cost of dealing with wastewater streams. The advanced molecular filtration system removes all types of lubricants, providing a truly scientific solution to a troublesome problem.

SP’s are proven in handling condensate containing these common compressor lubricants (including emulsified and silicone condensate solutions):

  • Polyglycols
  • Diester-based lubricants
  • PAO-based lubricants
  • Glycol-based lubricants
  • Silicone-based fluids
  • Hydraulic lubricants
  • Food grade lubricant
  • Mineral-based lubricants


Models vary by region. Please contact your Sullair sales representative for more details.

Jump To:

Specs Contact Us


5-200 hp

Maximum Temperature

Maximum Temperature
125 °F


  • Inlet/Outlet (inches): 0.25/0.75
  • Outlet (inches):0.75
  • Height (inches): 25
  • Width/Depth (inches): 15
  • Max Flow (gpm): 2
  • Max Temperature (°F): 125

Compression HP vs SP7 Life - Hours

  • 5-15 Compression HP: 16,000 Life Hours
  • 20-40 Compression HP: 8,000 Life Hours
  • 50-75 Compression HP: 6,000 Life Hours
  • 100-150 Compression HP: 4,000 Life Hours
  • 200+ Compression HP: 2,000 Life Hours

Unique size

  • 35 lbs new and 65 lbs full
  • Easy to manage
  • Small footprint

Maintenance free

  • No need to ever open the unit
  • No pumps, sensors, or pre-separation filter pads
  • Not susceptible to mold
  • No messy element to change

No power consumption

  • No electricity needed
  • Internal decompression chamber
  • Place anywhere

<10 ppm carryover

  • Separates emulsified condensate
  • Disposal as non-hazardous special waste

Easy installation and change out

  • Prime unit and run condensate lines
    directly into unit
  • Saves time and mess for service
  • When full, replace with a new unit

Works with ALL Compressor Fluids

  • Manages all compressor fluids including POLYGLYCOL and SILICONE
  • Alumina silicate substrate media bed
  • Specific gravity, emulsification, and relative humidity do not affect performance
