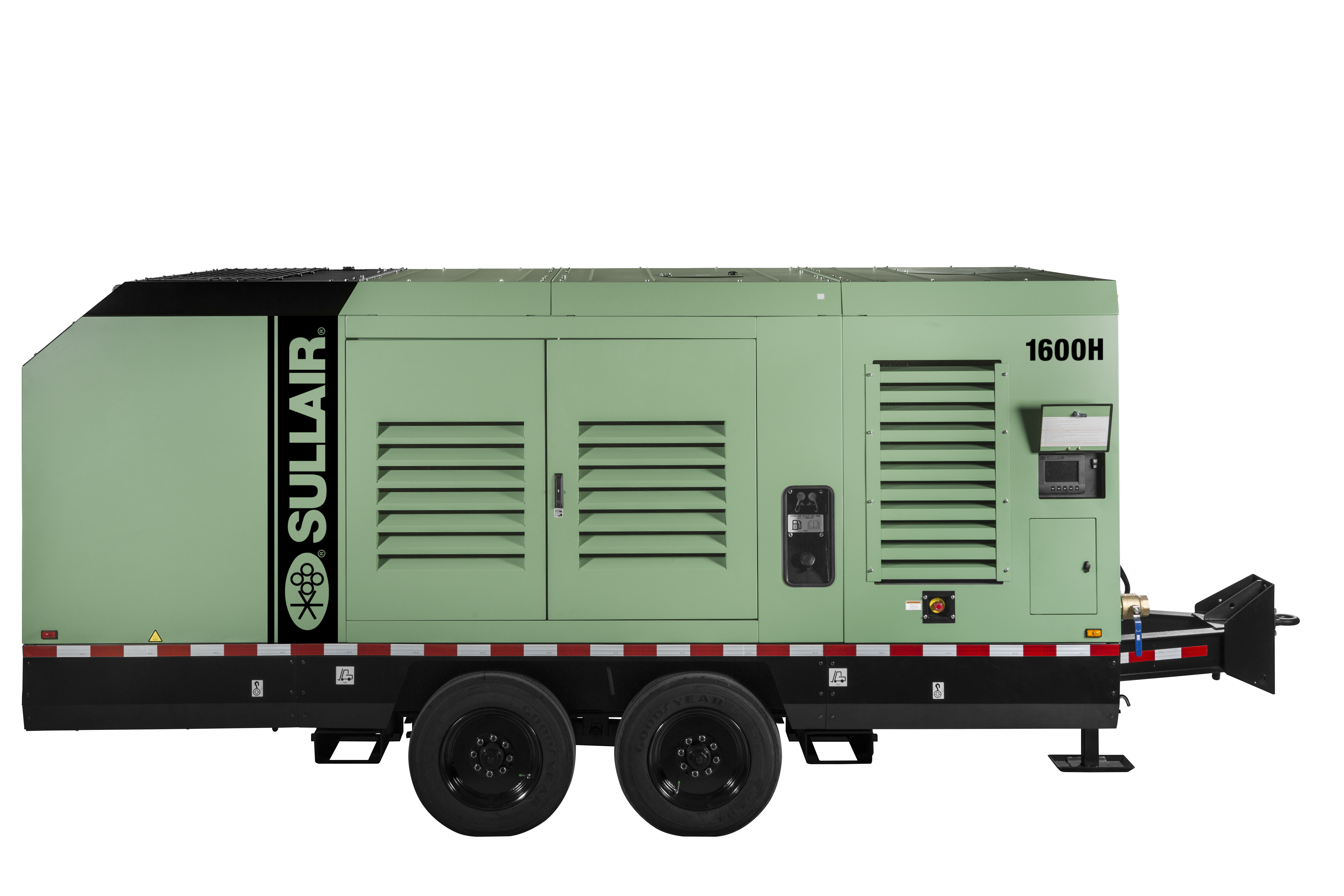

1600H Rotary Screw Compressor

Meet the new Sullair 1600H Tier 4 Final — a job site juggernaut. Designed with the end user in mind, the Sullair 1600H features:

  • Highest-quality, durable package
  • Easy serviceability
  • Improved usability

Models vary by region. Please contact your Sullair sales representative for more details.

Jump To:

Specs Contact Us
CFM
CFM

Flow

1600 cfm
45.3 m³/min
Pressure
Pressure

Pressure

150 psi
10.3 bar

Performance

  • Actual Delivery cfm (l/s): 1600 (755)
  • Rated Pressure psig (bar): 150 (10.3)
  • Pressure Range, max/min psig (bar): 150(10.3) / 80 (5.5)
  • Service Valves, I: 1 (3" NPT) / 2 (.75" NPT)
  • Compressor Fluid Capacity gal (l): 40(151)
  • Maximum Operating Altitude ft (m): 10,000 (3,048)
  • Fuel Consumption Full Load gal/h (l/h): 24 (90.8)

Weights & Dimensions

DPQ

  • Working weight lbs (kg): 19,085 (8,657)
  • Dry weight lbs (kg): 17,269 (7,833)
  • Length in (mm): 239 (6,071)
  • Width in (mm): 88 (2,235)
  • Height in (mm): 101 (2,565)
  • Max Towing Speed mph (km/h): 65 (104)

Engine

  • Make Emissions Level: Caterpillar C15 Diesel (T4F)
  • Displacement in³ (l): 928 (15.2)
  • Cylinders: 6
  • Bore x Stroke in (mm): 5.4 (137) x 6.73 (171)
  • Operating Speed rpm: 1,800
  • Minimum Idle Speed rpm: 1,400
  • Fuel Tank Capacity gal (l): 249 (943)
  • Fuel to DEF fill: 2 to 1
  • Fuel Run Tim @ Full Load hrs: ~10

 Highest-quality, durable package featuring:

  • Legendary Sullair 25 Series air end
  • Caterpillar C15 Engine
  • Highway towable running gear rated at 65 mph

Multiple lockable service doors to provide easy access

Available with and without running gear

Sullair AirLinx™ — a telematics solution providing:

  • GPS
  • Fleet management
  • Remote monitoring and troubleshooting

Available in Standard Air or Aftercooled and Filtered Configurations

Improved usability

  • Rugged 7” Sullair Touch Screen controller provides in- depth compressor performance information on demand
  • Improved fuel efficiency — approximately 20% lower part load fuel consumption and 10% overall fuel consumption improvement
  • Quick connections and easy-operation valve for external diesel fuel supply to extend jobsite runtime diesel fuel supply to extend jobsite runtime

DLQ

  • Working weight lbs (kg):17,577 (7,973)
  • Dry weight lbs (kg): 15,761 (7,149)
  • Length in (mm): 208 (5,283)
  • Width in (mm): 88 (2,235)
  • Height in (mm): 89 (2,261)
