Non-Cycling Refrigerated Compressed Air Dryers

ENERGY-SAVING TECHNOLOGY MEETS STABLE DEW POINT

Sullair Non-Cycling Refrigerated Compressed Air Dryers focus on efficient design, energy-saving technology and stable point in all operating conditions.

  • Unique heat exchanger designed for minimum pressure drop and gravitational self-cleaning
  • Hot gas bypass for stable dew point in all operating conditions
  • Integrated SULLIMAX™ drain for reliable condensate discharge and maximum energy savings*

Models vary by region. Please contact your Sullair sales representative for more details.

Jump To:

Specs Contact Us

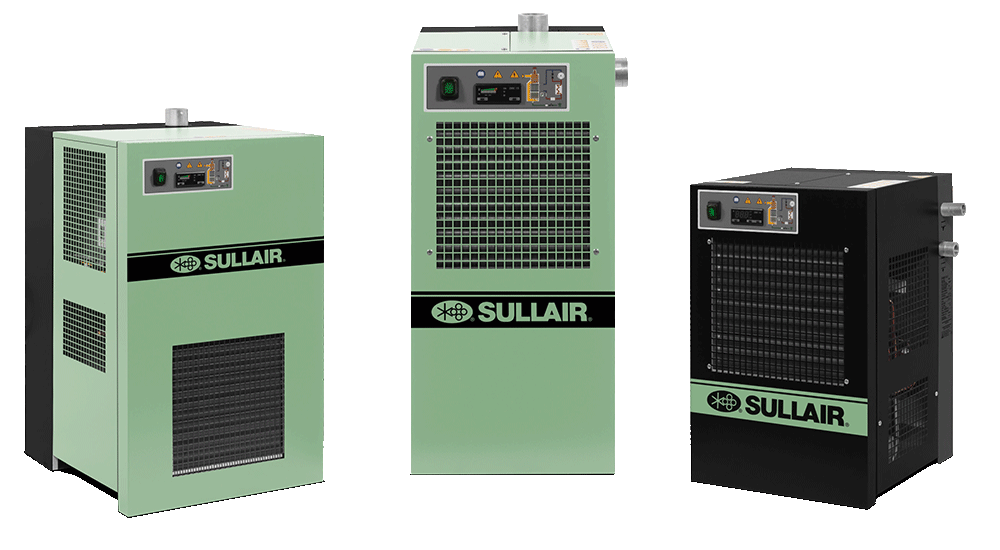

Sullair Refrigerated Compressed Air Dryer Assortment
CFM
CFM

Flow

10 - 10,000 cfm
.28 - 283.2 m³/min
Pressure
Pressure

Pressure

200 - 232 psi
13.8 - 16.0 bar

  • Unique heat exchanger designed for minimum pressure drop and gravitational self-cleaning
  • Hot gas bypass designed for stable dew point in all operating conditions
  • Integrated SULLIMAX drain for reliable condensate discharge and maximum energy savings*
  • Energy-saving technology
    • Oversized condensers
    • Smaller high-performance compressors
  • Easy-open panels providing simplified access for routine maintenance and service

*Optional on SR models

SR Series

  • SULLIMAX™ Condensate Drain

SR+ Series

  • PC Connection Kit**

SRHT Series

  • Timer Solenoid Condensate Drain

**Available on SR+ models 600 scfm and up

SR Series

  • Flow Rates scfm: 10 - 480
  • Max Inlet Air Temperature °F: 130
  • Max Inlet Operating Pressure psig
    • SR 10 - 50: 232
    • SR 75 - 480: 200
  • Standard Outlet Pressure Dew Point °F: 37 - 41
  • ISO 85731:2010 Air Quality Class: Class 4 - 5

SR+ Series

  • Flow Rates scfm: 20 -  10,000
  • Max Inlet Air Temperature °F: 160
  • Max Inlet Operating Pressure psig
    • SR+ 20 - 50: 232
    • SR+ 75 - 10,000: 200
  • Standard Outlet Pressure Dew Point °F: 37 - 38
  • ISO 85731:2010 Air Quality Class: Class 4 - 5

SRHT Series

  • Flow Rates scfm: 20 -  350
  • Max Inlet Air Temperature °F: 210
  • Max Inlet Operating Pressure psig: 200
  • Standard Outlet Pressure Dew Point °F: 45 - 50
  • ISO 85731:2010 Air Quality Class: Class 5 - 6
